Ascent Motion Sensor LED Stair Light Kit

$106.99

~~$151.42~~ $106.99

Save 29% Sold out

Light Color Warm White (3000K) Neutral White (4000K) Cool White (6000K) RGB

A motion-sensing stair light kit that lights your staircase one step at a time. Two PIR sensors, placed at the entrance and exit of the stairs, pick you up as you approach, and an adjustable day/night sensor (5 to 150 Lux) decides when the lights are allowed to come on.

The COB strip is 8mm wide with 480 LEDs per meter, delivering 1000–1100 lumens per meter at 10W/m, and it cuts every 50mm to fit each tread. Adhesive backing fixes it under the step. One main line cable connects every strip, so there is no separate wiring run for each step: press the two clamps onto the cable and you're connected.

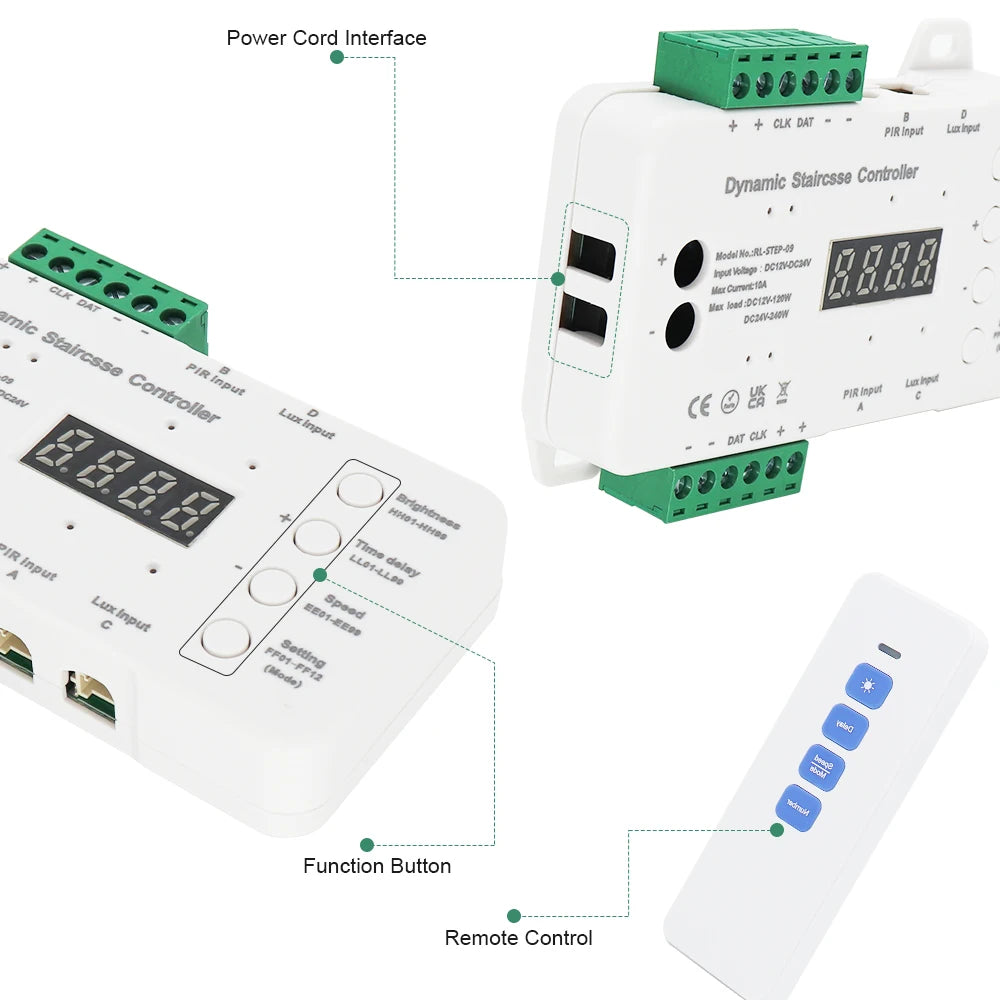

Everything is set from the controller's digital display: brightness in 99 levels, delay time in 99 levels from 4 to 200 seconds, sweep speed in 99 levels from 150 to 2600 ms, and 12 lighting modes. A remote with wall mount is included (battery not included), and the controller supports up to 99 steps.

Walk up and the steps light in sequence; walk away and the delay timer decides how long they stay lit.

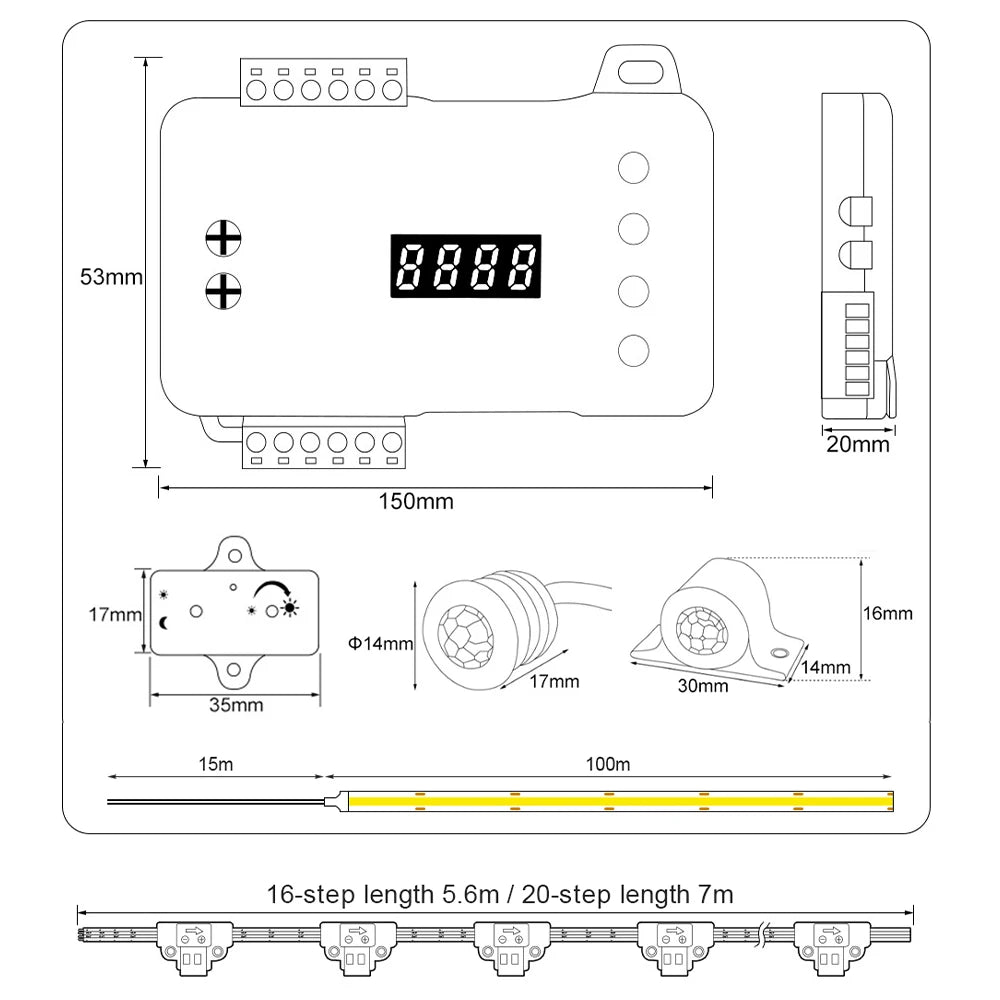

Product Size

Component	Dimensions
COB strip width	8mm / 0.31″
Strip thickness	2.2–2.5mm / 0.09–0.10″
Strip length per piece	1m / 39.4″
Cut interval	Every 50mm / 2″
Lead wire on strip	15cm / 5.9″
Recessed sensor hole	Ø 15mm / Ø 0.59″
Surface sensor connector hole	Ø 10mm / Ø 0.39″

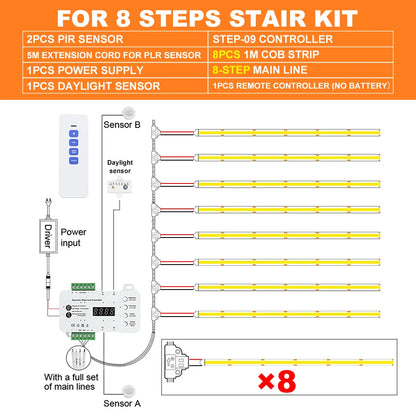

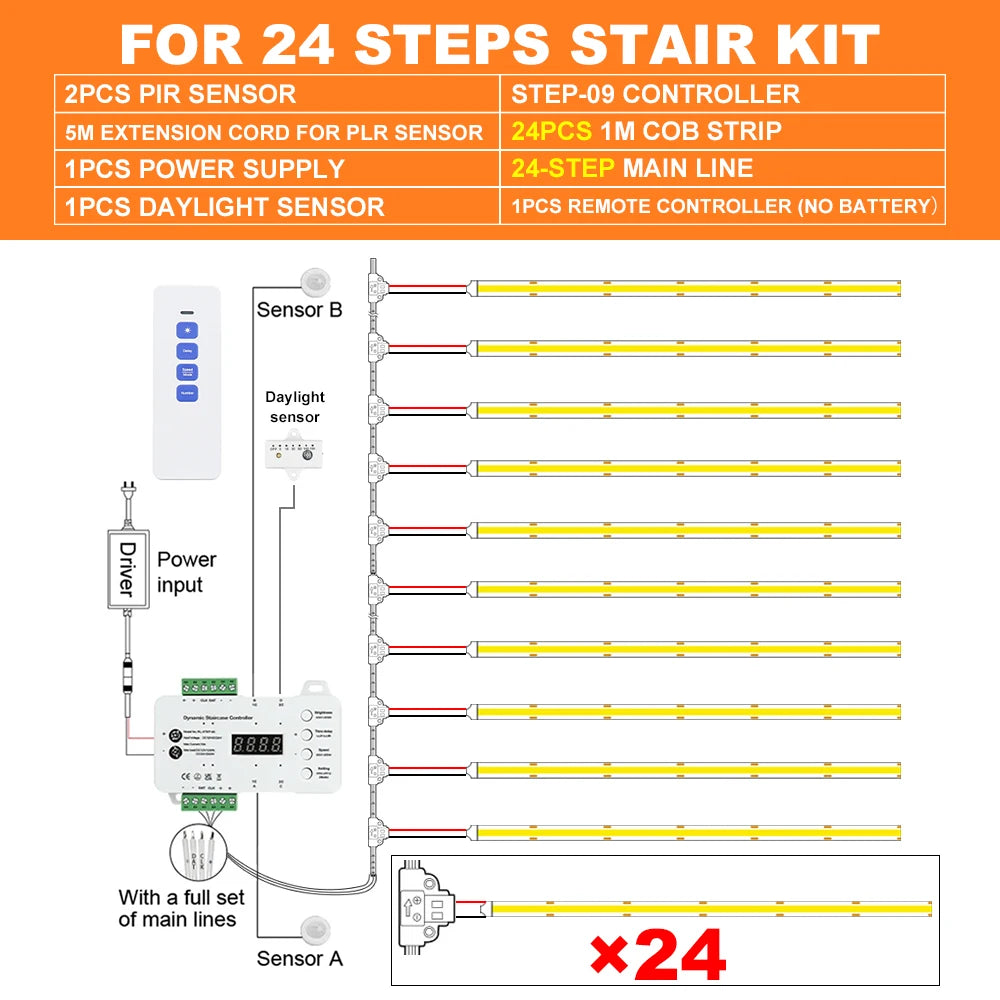

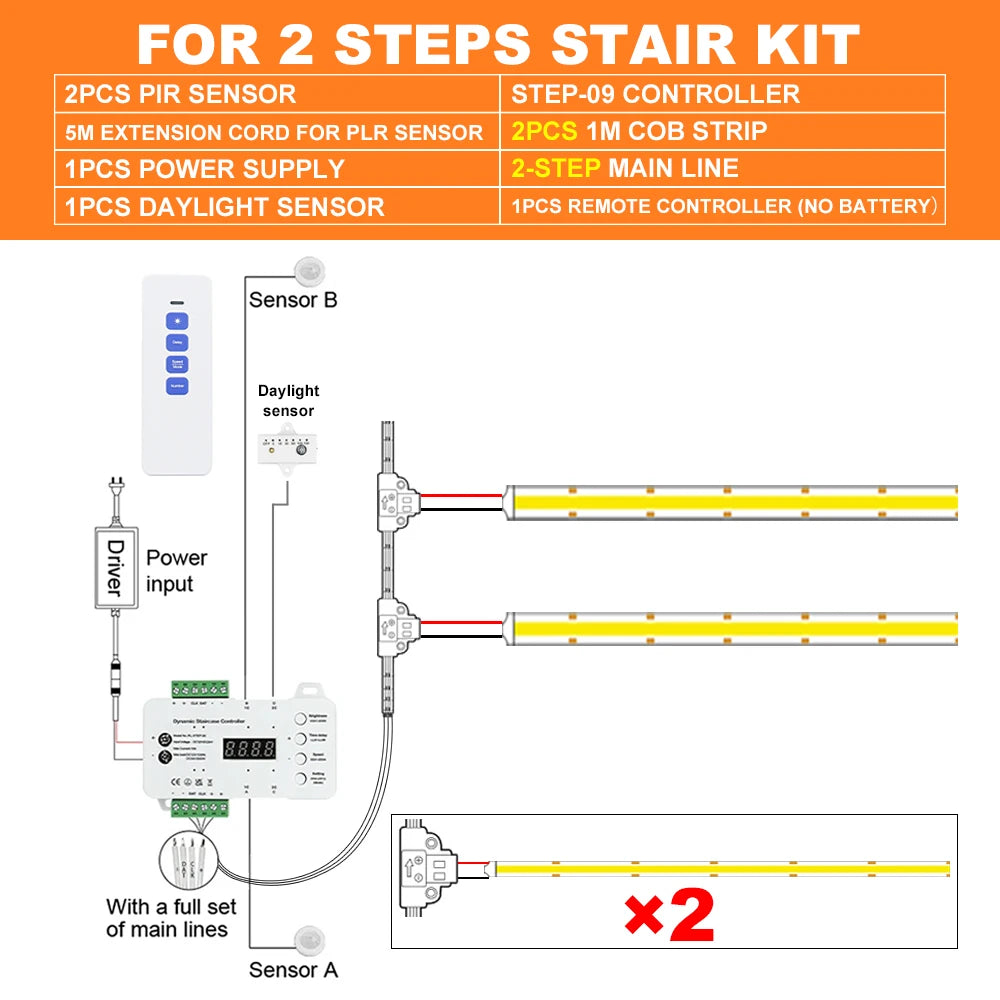

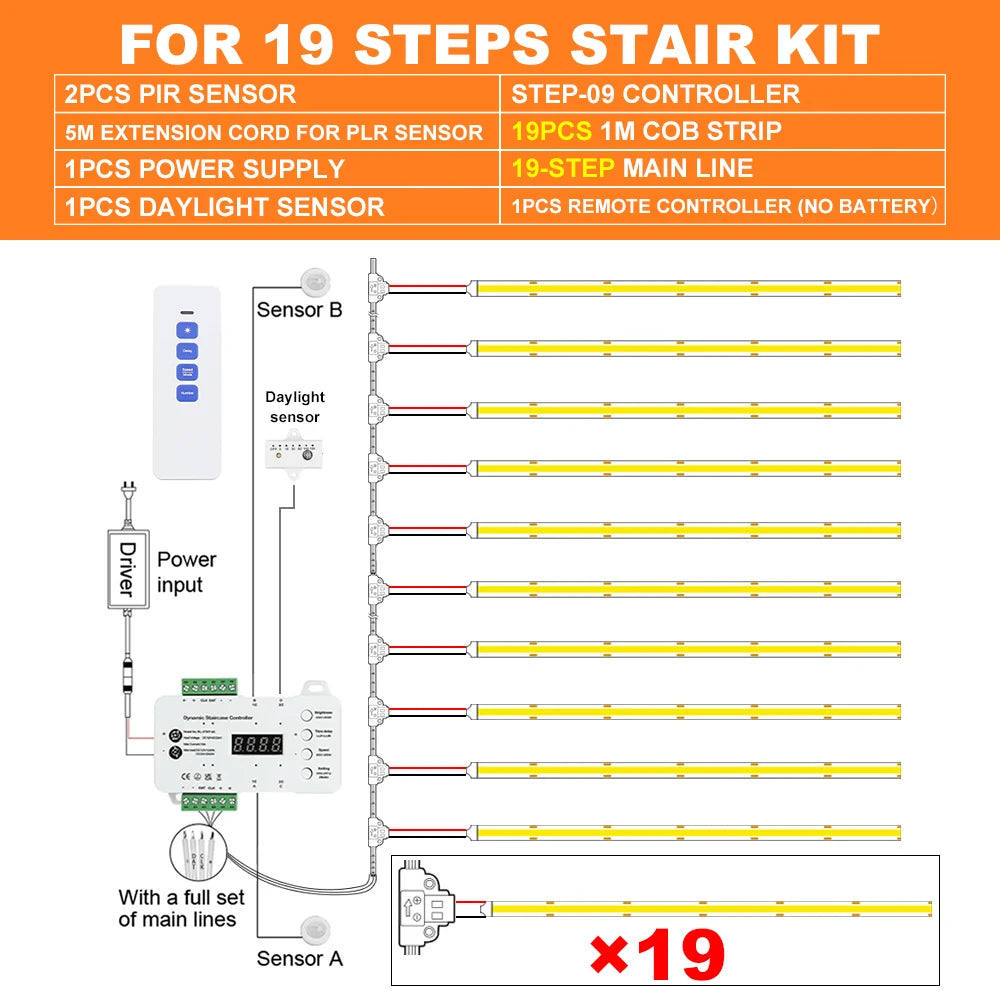

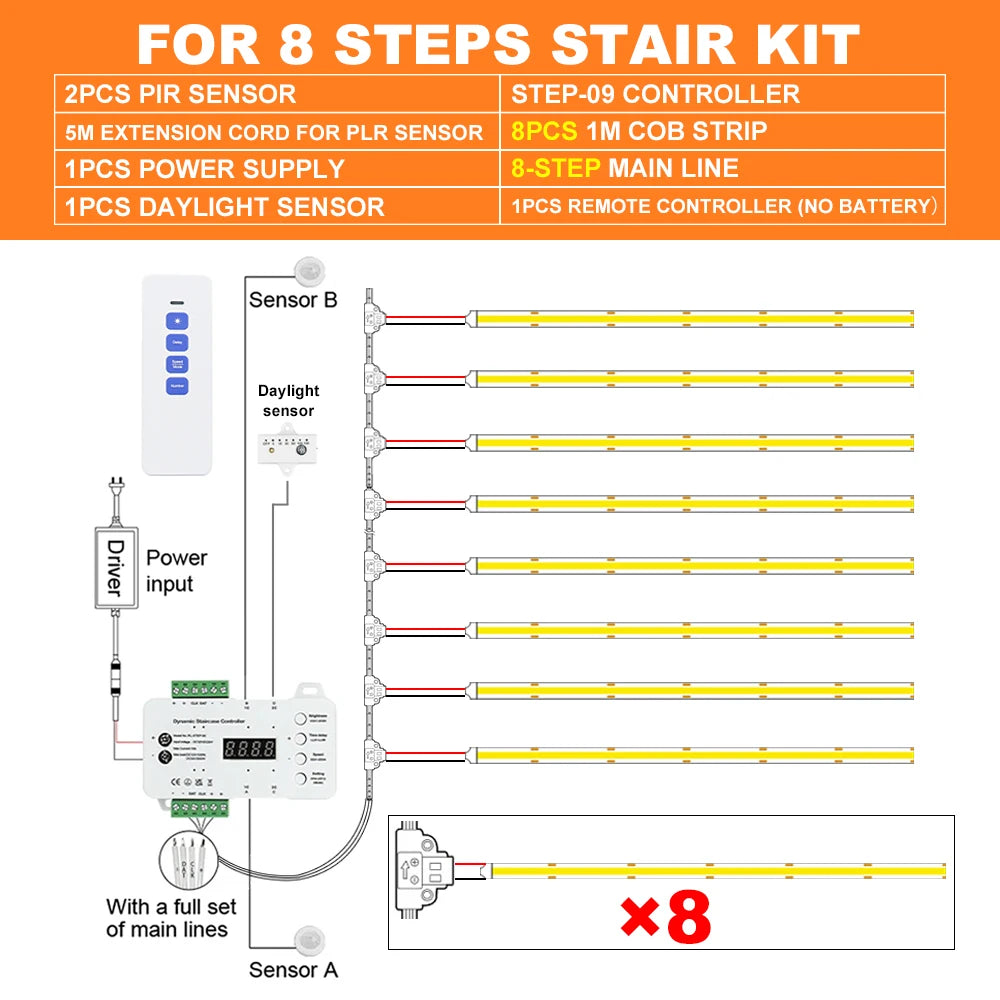

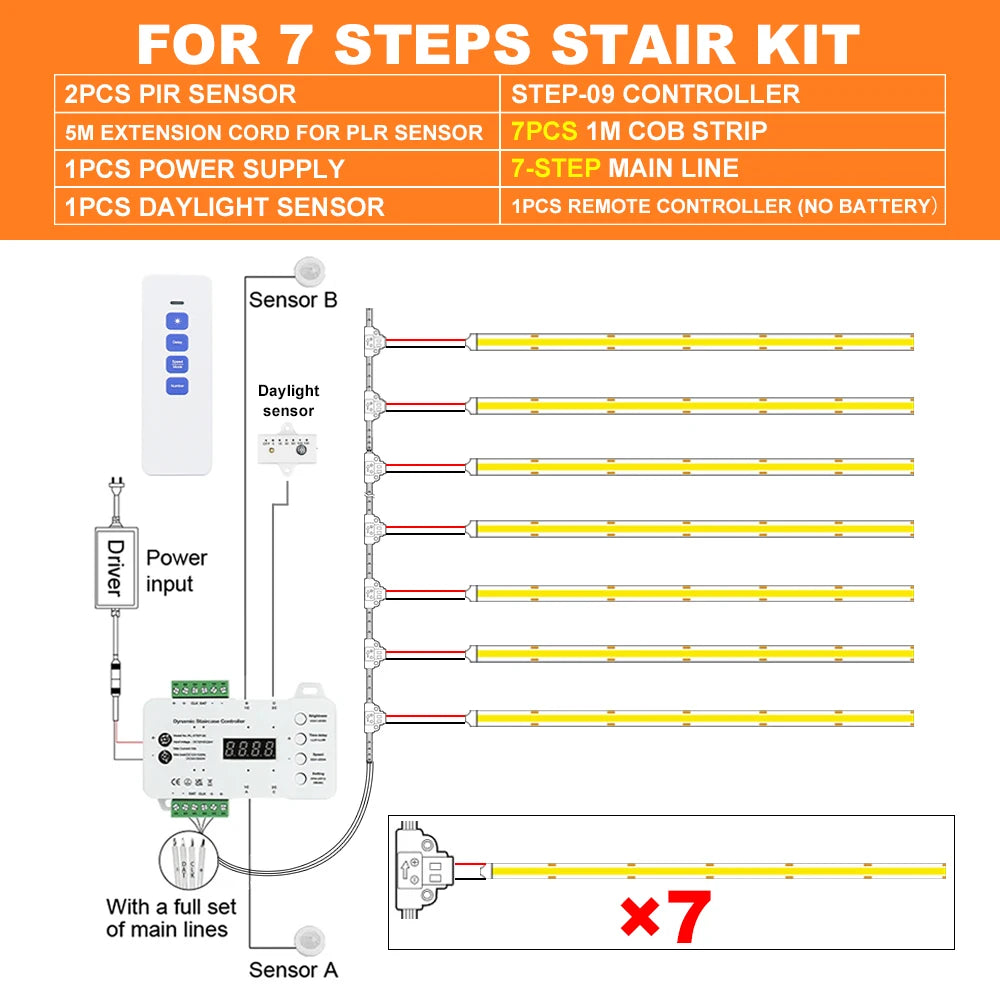

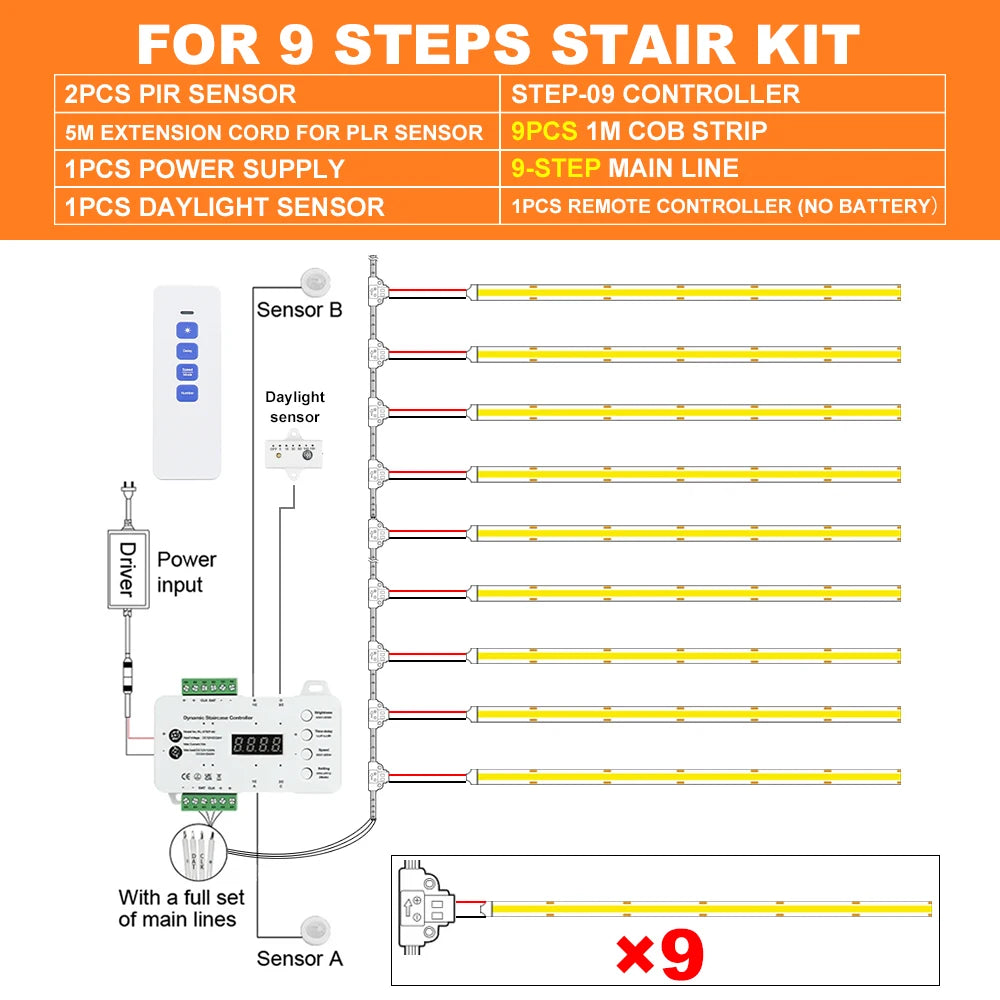

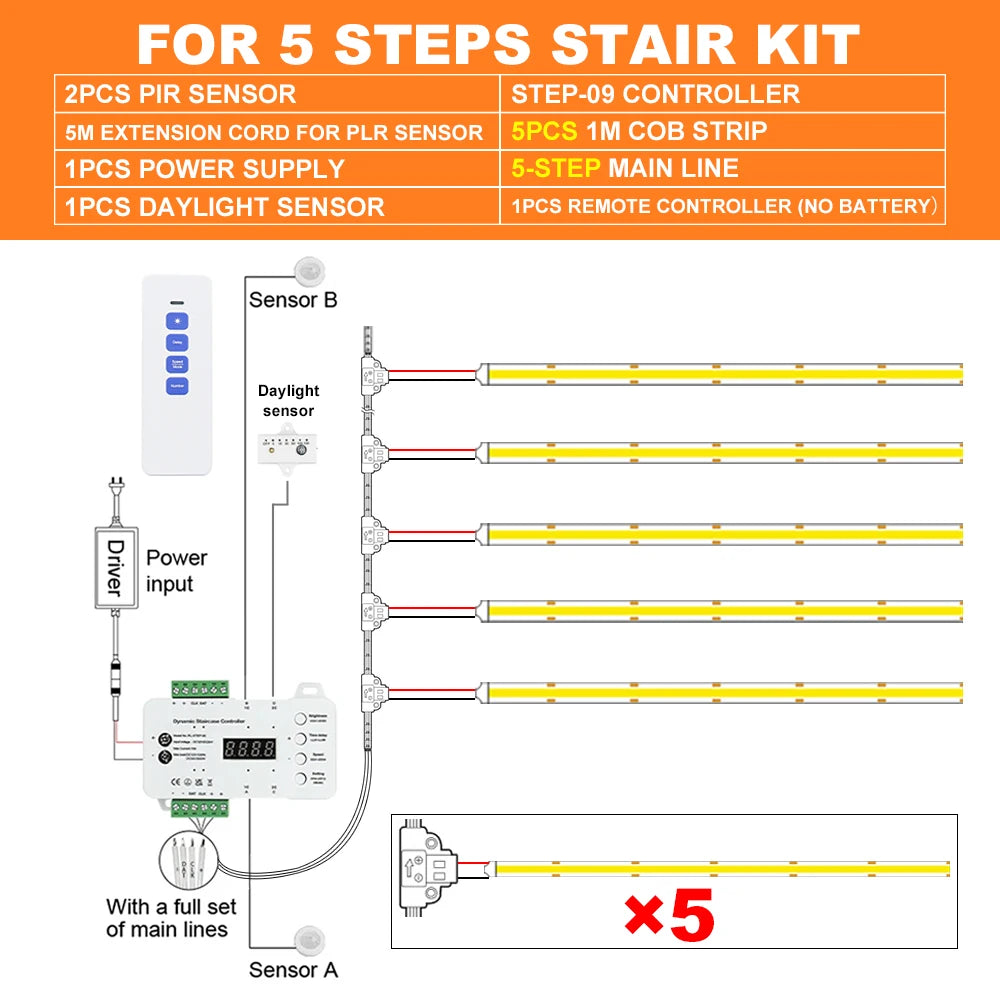

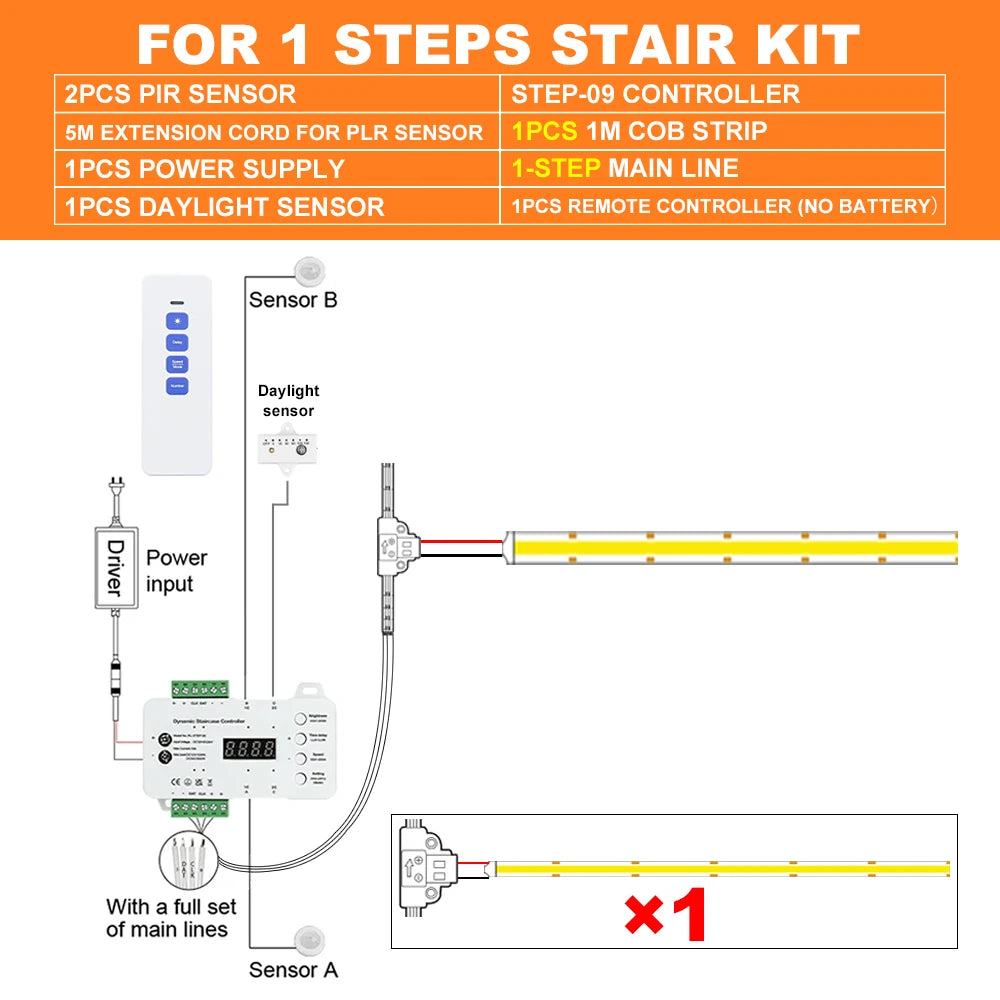

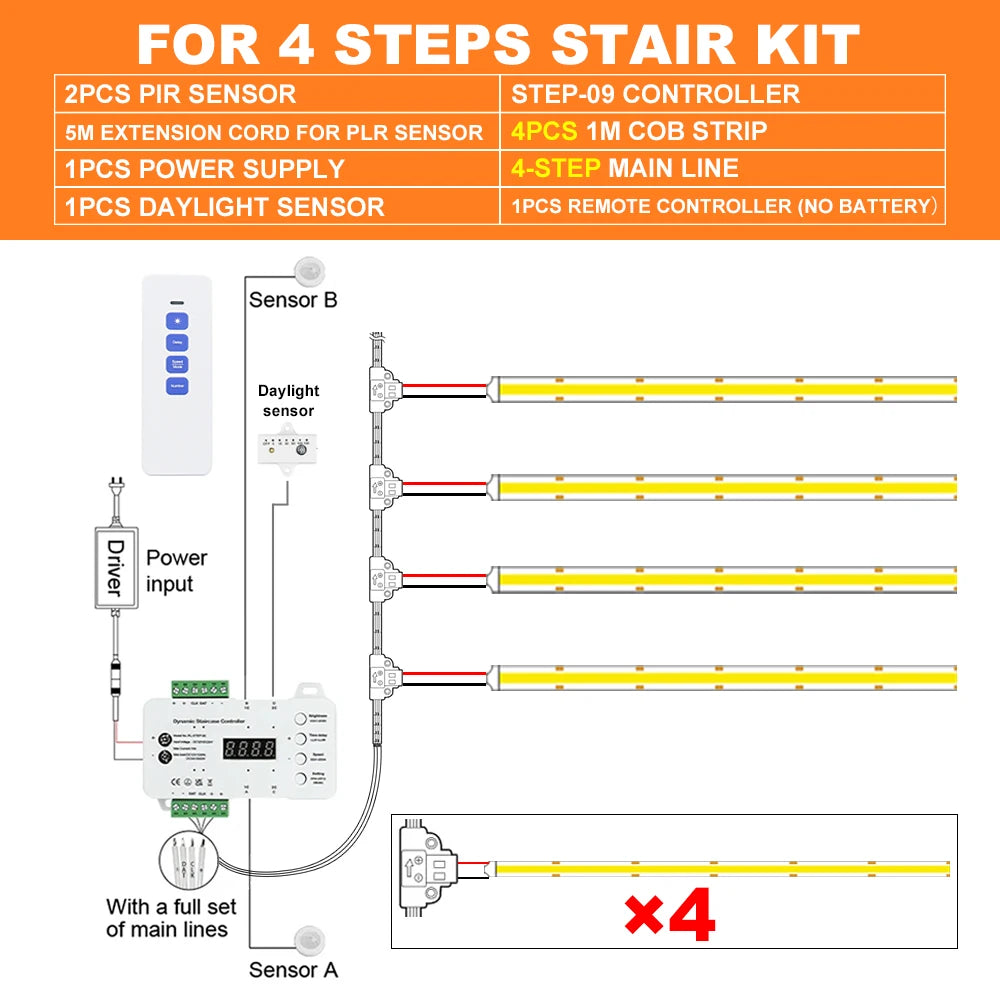

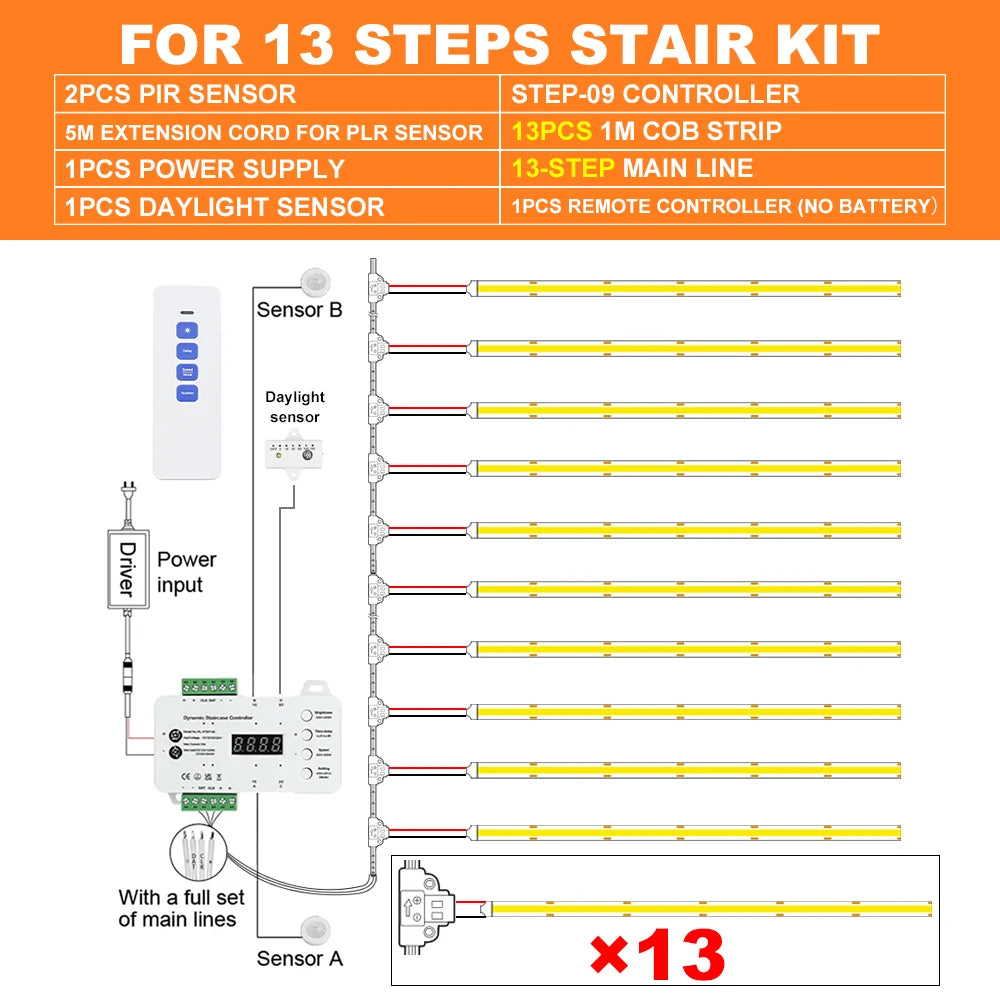

Choose your kit by number of steps (1 to 28) and light color. The strip cuts every 50mm to fit each tread.

Details

Spec	Detail
Kit Sizes	1 to 28 steps (controller supports up to 99 steps)
Light Color	Warm White (3000K), Neutral White (4000K), Cool White (6000K), RGB
LED Strip	COB, 480 LEDs/m, 10W/m, DC 24V
Brightness	1000–1100 lm/m
Controller Voltage	DC 12V / DC 24V, max current 10A
Power	Under 15W per step; under 240W total (120W at DC 12V, 240W max at DC 24V)
Sensors	2 PIR motion sensors (surface or recessed mounting) and a day/night sensor with 5 to 150 Lux settings
Controls	Digital display controller and remote; 99 levels each of brightness, delay and speed; 12 modes
Mounting	Adhesive backing
Water Protection	IP30, indoor use only

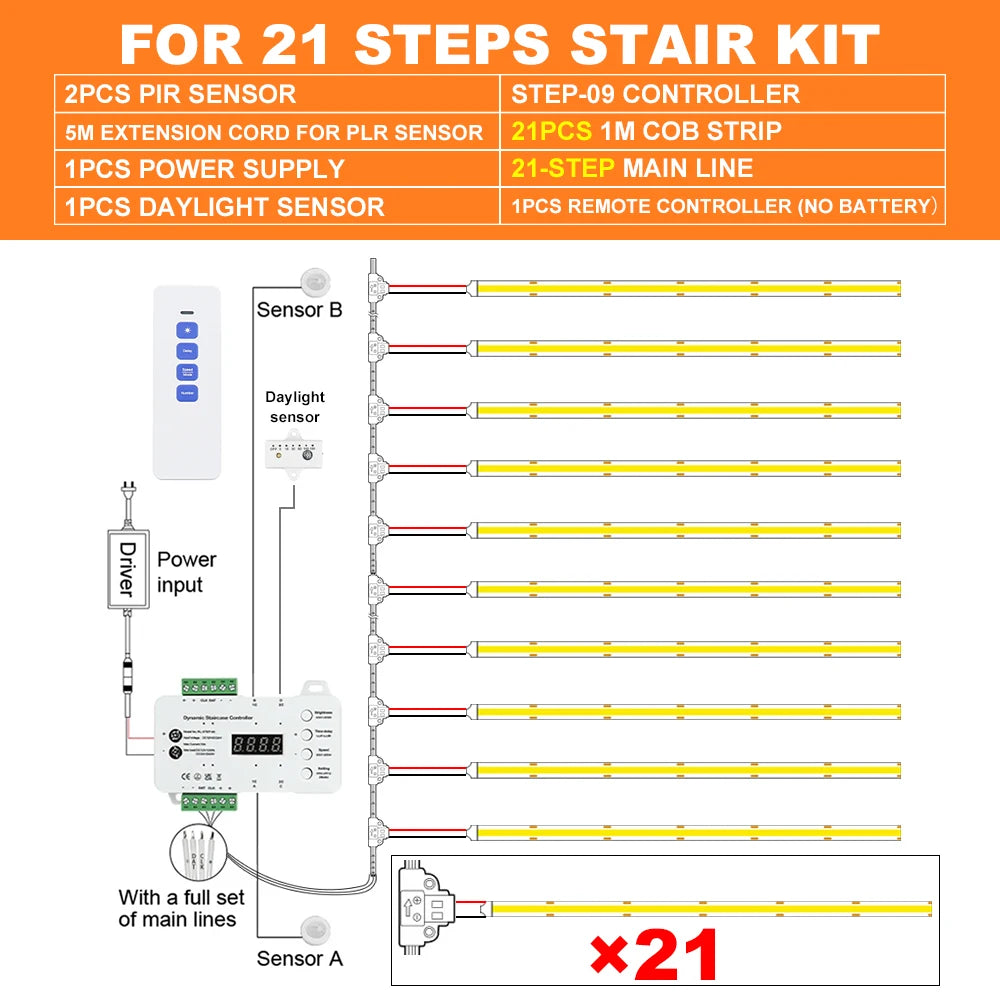

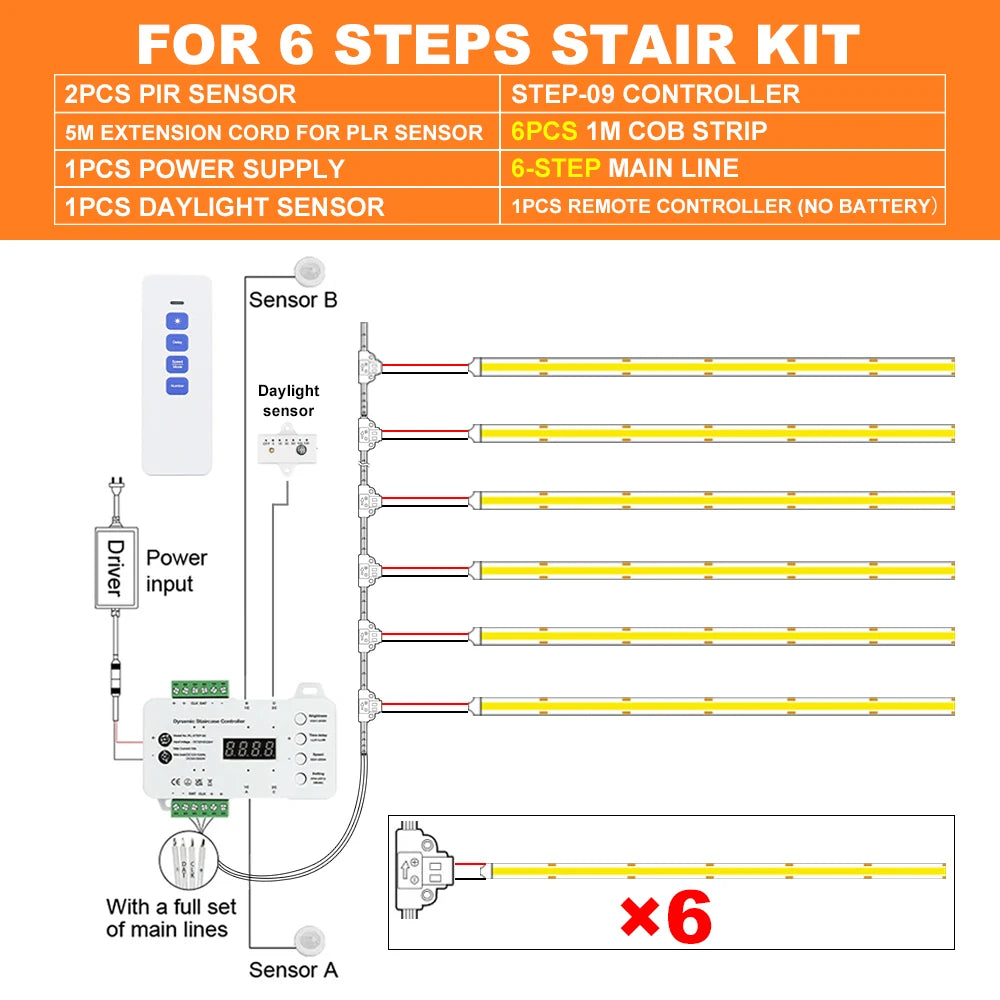

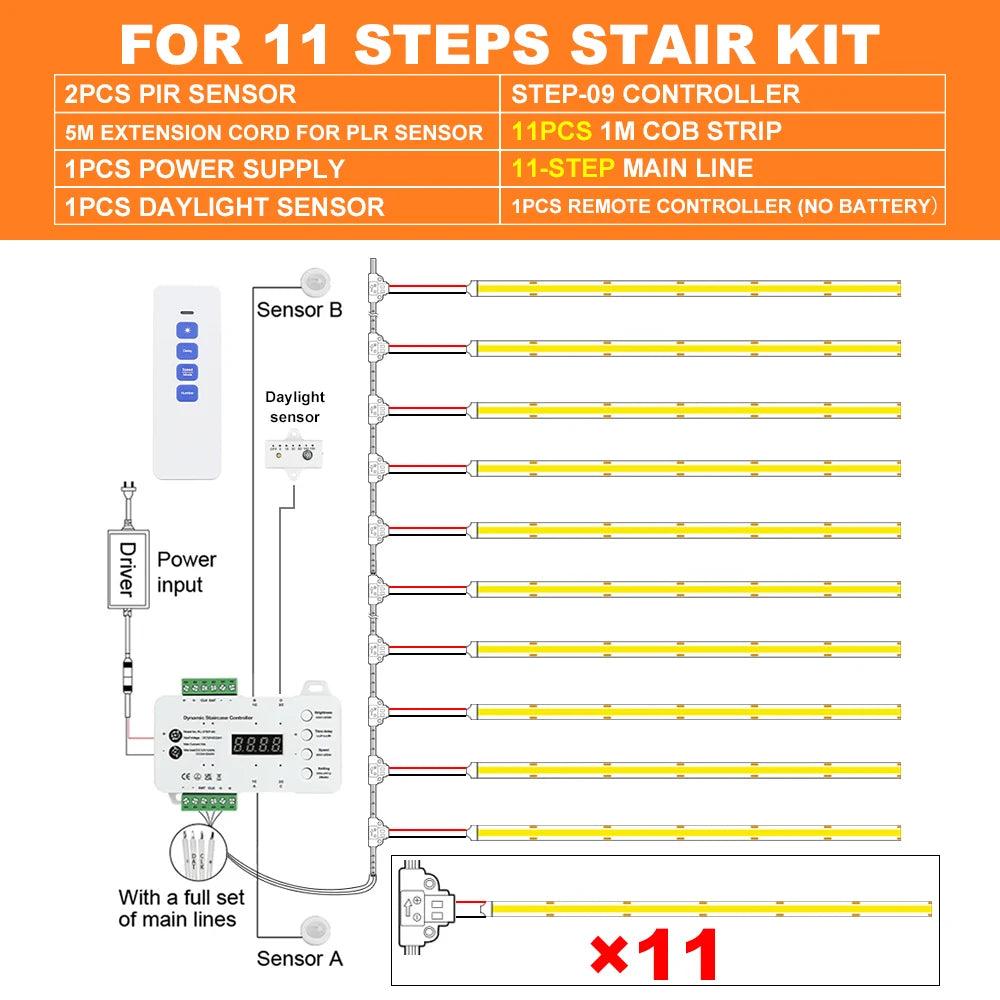

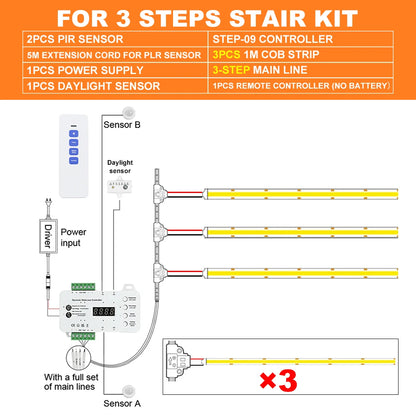

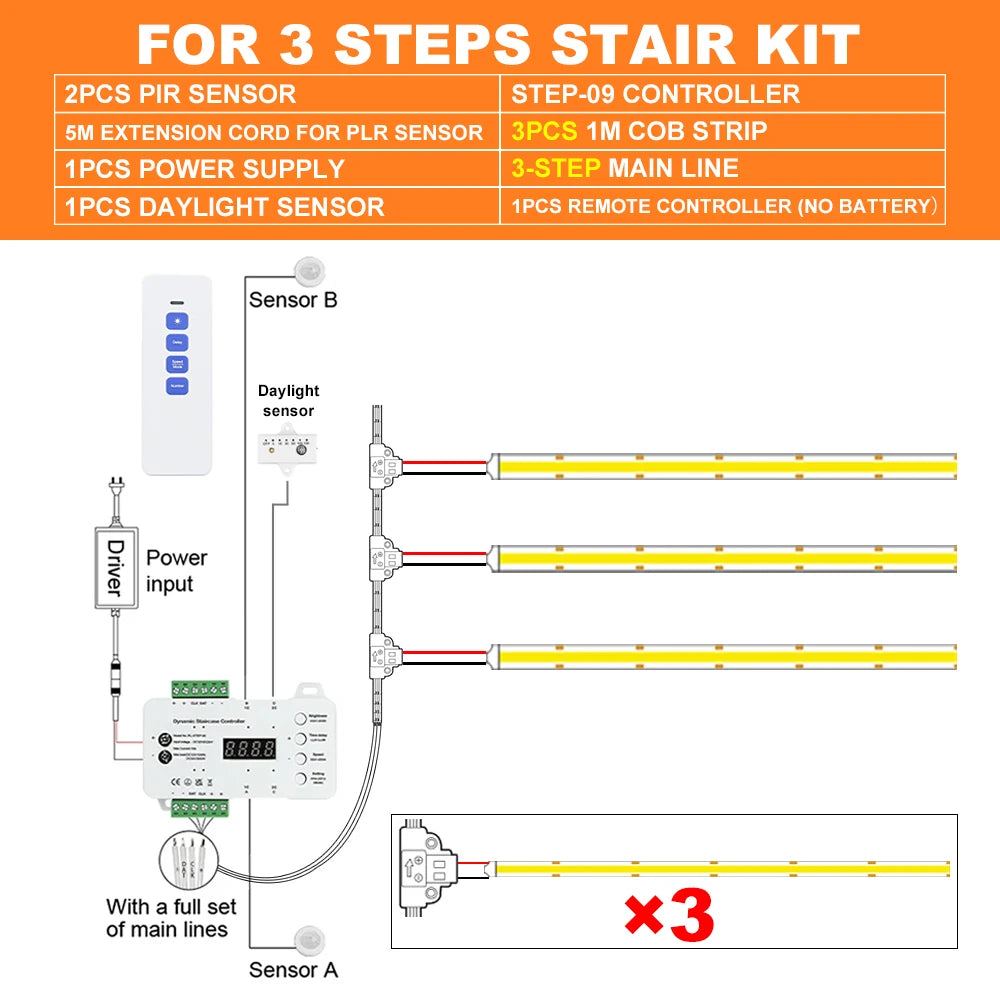

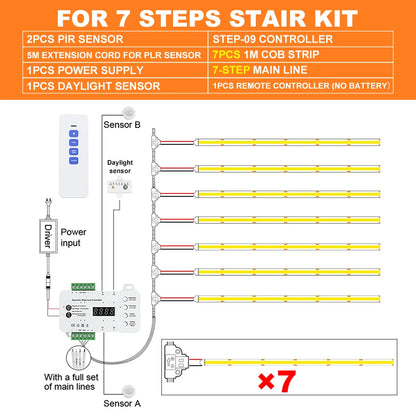

Included	Staircase controller, day/night sensor, PIR sensors with extension and mounting kit, main line cable, power supply, remote with wall mount (battery not included), COB LED strip, tools and accessories
User Manual	Open the installation manual (PDF)

Elevate your space with Casa Norex.

Returns and Refunds

At Casa Norex, your satisfaction comes first. We offer 30 day easy returns from the day your order arrives.

You can contact us anytime at info@casanorex.com.

We are always here for you!

Shipping and Delivery

Shipping information: We process orders within 1-2 business days from our US warehouse. After dispatch your order will arrive in 7-10 business days!

View full details

Free shipping in the USA

Free shipping, Everytime!

dedicated support team

Response Within 24 Hours

Easy 30 day returns

Quick and easy returns with no hassle

Secure Payments

Encrypted and safe checkout

Stairs that light up step by step

Two PIR motion sensors, an adjustable day/night sensor and a digital controller light each tread in sequence as you approach.

Low-voltage DC only

The controller and LED strip run on DC voltage. Connect them through the DC power supply and never directly to 110V/220V mains power. Do not add or remove strips while the controller is powered on, or the IC in the main cable can burn out.

Indoor use only

This kit is rated IP30 and is not waterproof. Keep it away from moisture. If the + and - connections are reversed, the controller will not work.

Sensor placement

The controller does not light both sides of the stairs at the same time. Install the A and B sensors at the entrance and exit of the stairs, facing the person walking.

The Essentials

What makes it, in a few parts.

Dual PIR motion sensing

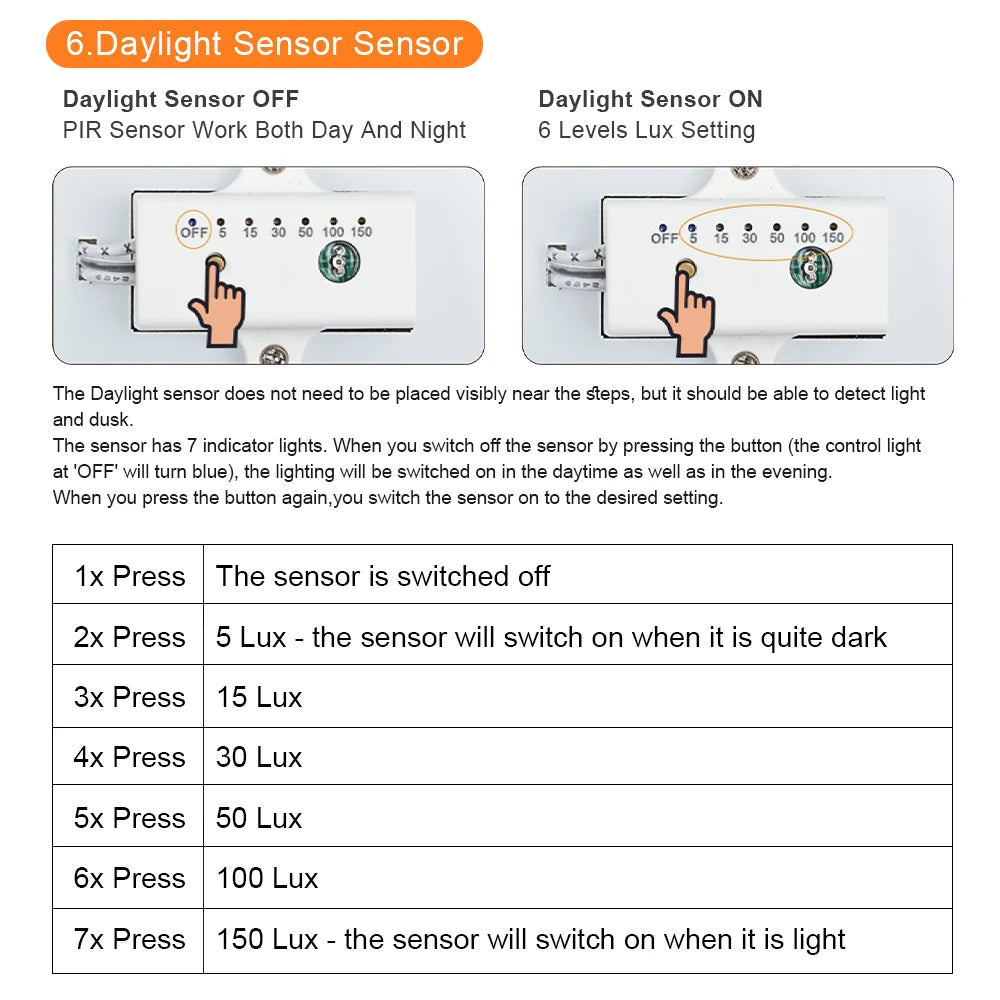

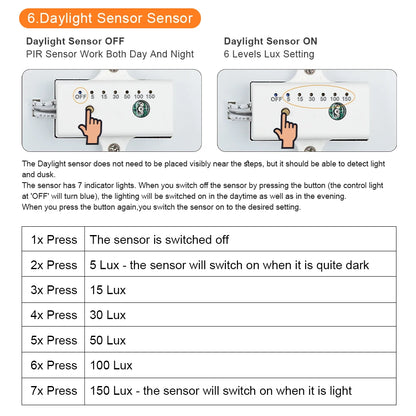

Two PIR sensors at the entrance and exit of the stairs detect you as you approach, with surface or 15mm recessed mounting. The day/night sensor (5 to 150 Lux) lets you choose how dark it must be before the lights switch on.

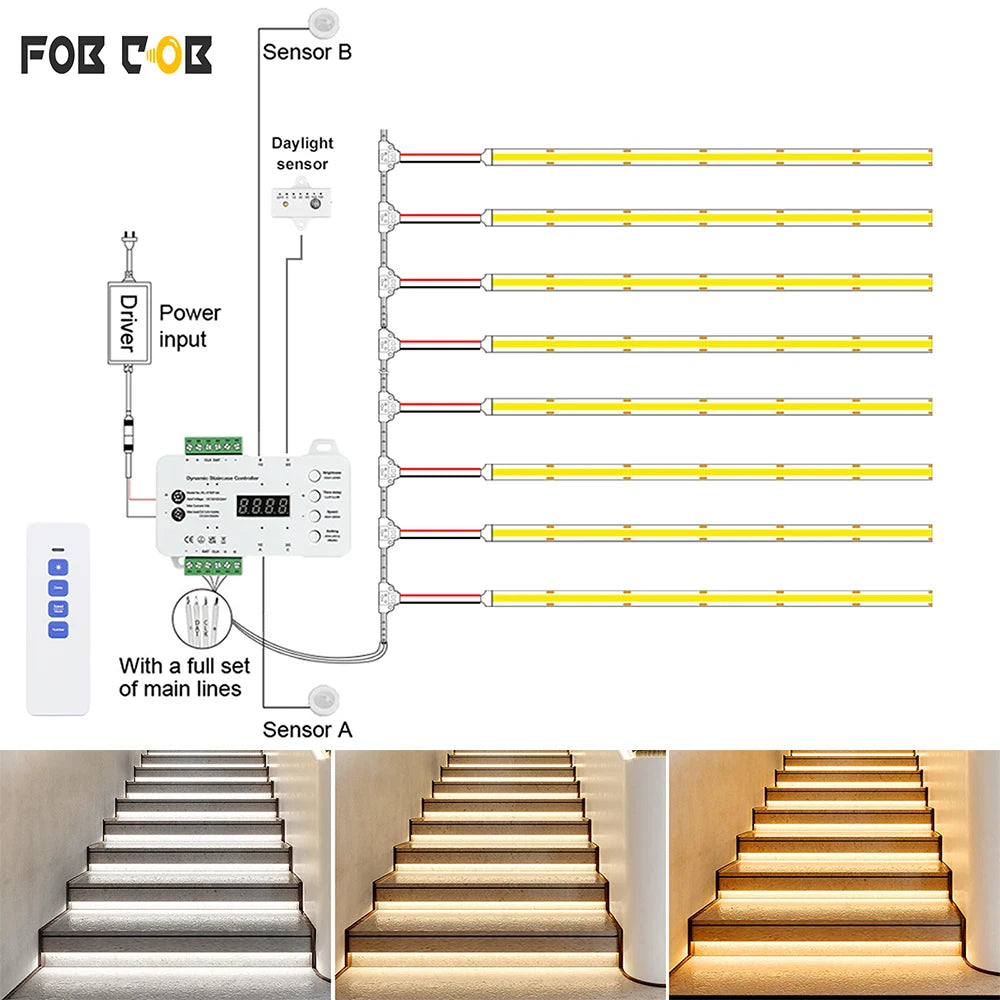

One main line, no wiring per step

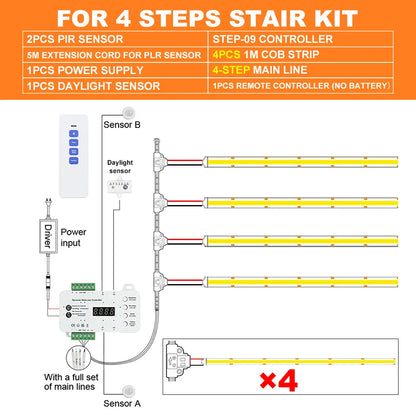

A single main line cable connects every strip. Press the two clamps onto the cable, connect the strip's black and red leads, and move on to the next step.

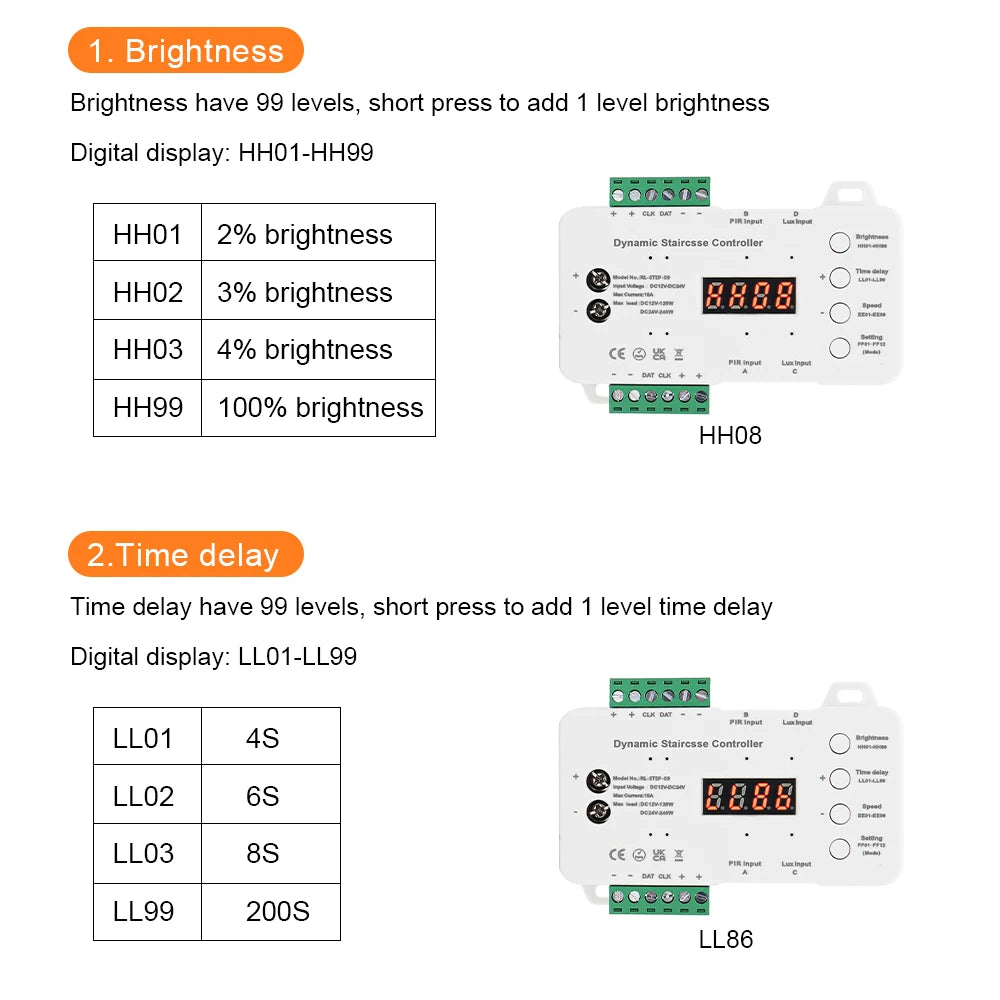

Tunable from the controller

Set brightness, delay time, speed and one of 12 modes on the digital display, or use the included remote. Brightness, delay and speed each have 99 levels.

Power rating under 15W per step and under 240W total for stair LED strip kit — Casa Norex

Motion Sensing

Lights that respond as you approach

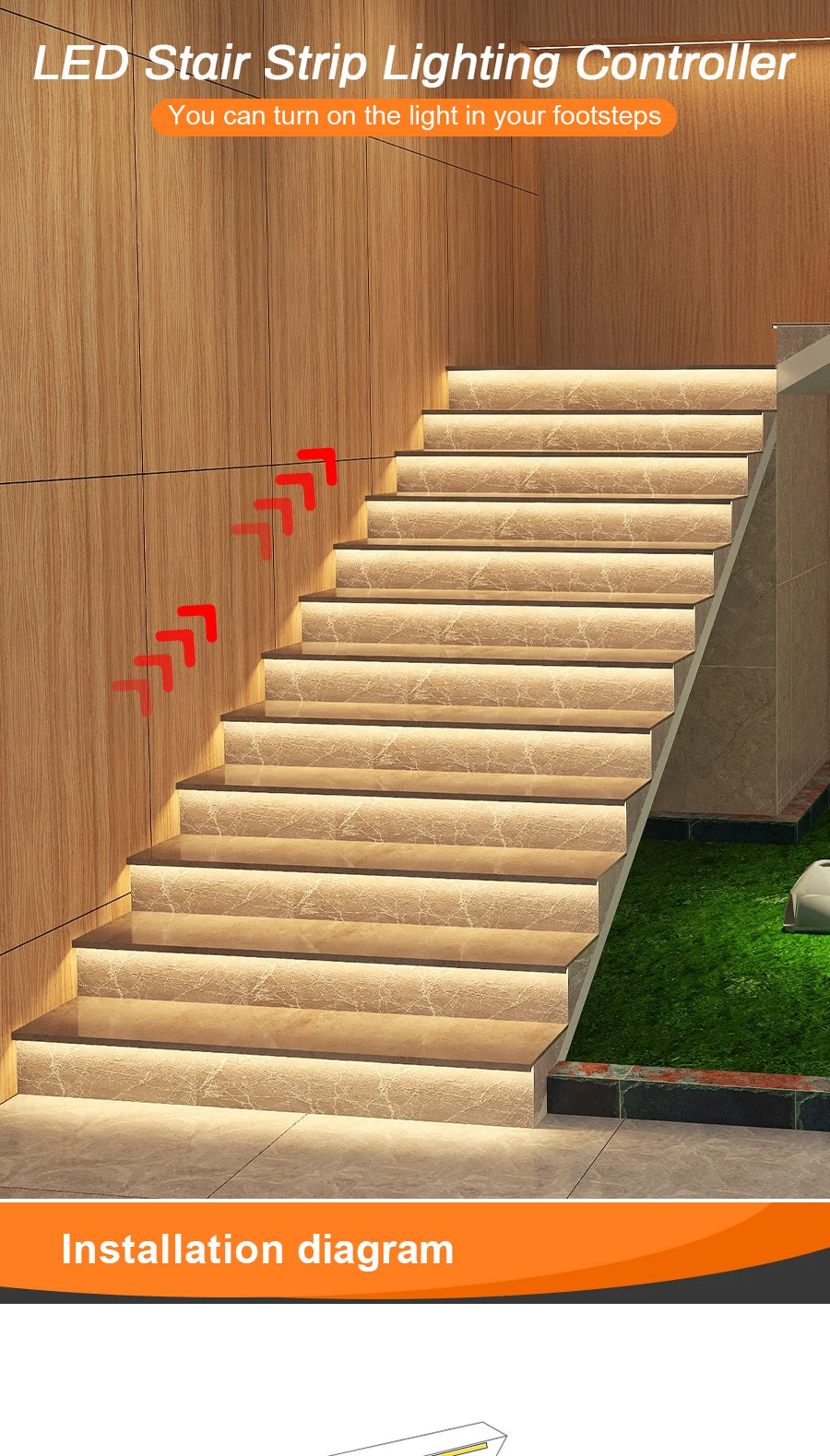

Place one PIR sensor at each end of the staircase, facing the person walking. Surface mounting needs a 10mm hole for the connector; recessed mounting needs a 15mm hole for the sensor. The controller then lights the steps one at a time, with delay time and speed set to your preference.

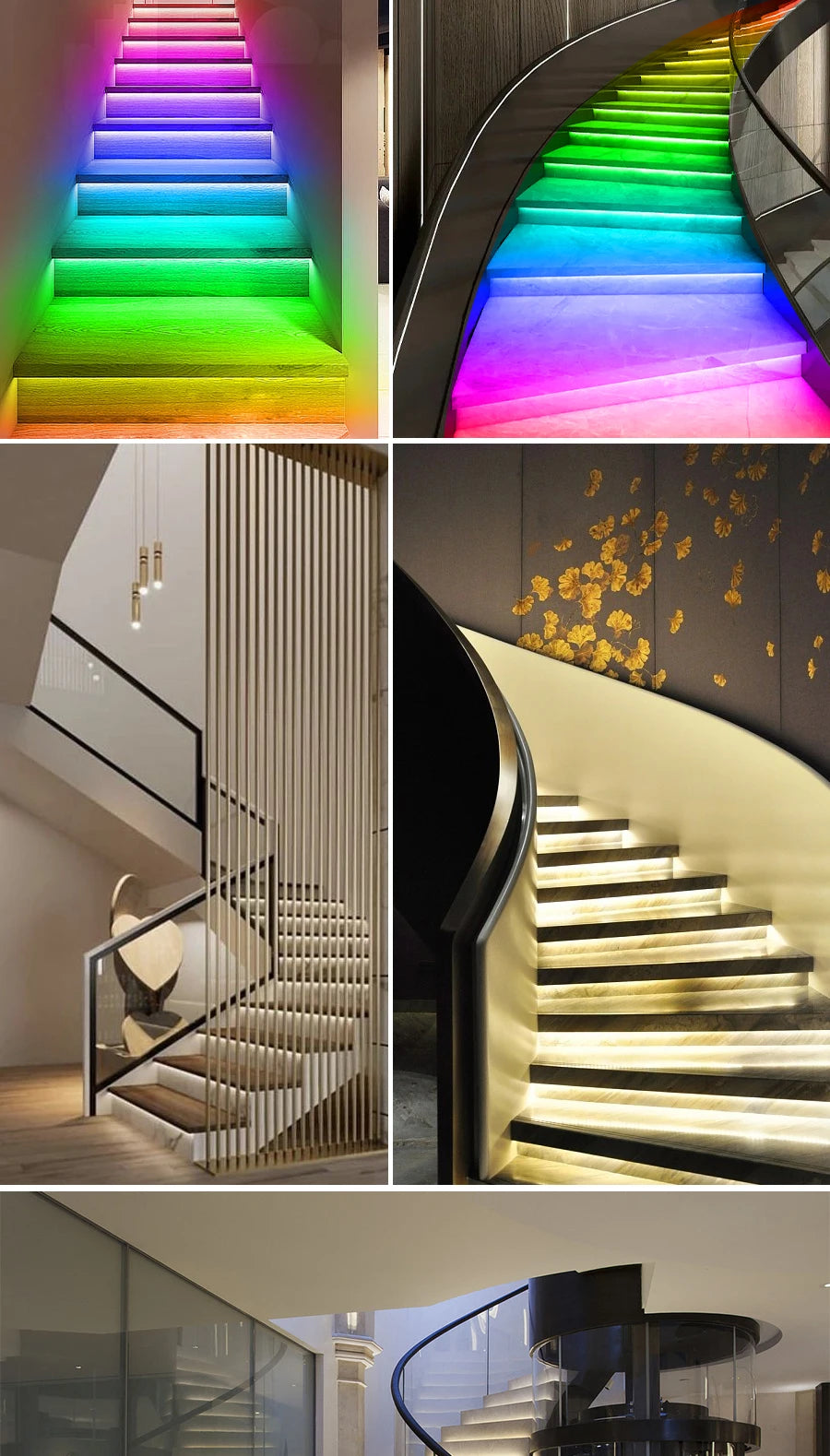

LED strip light stair kit lighting a staircase one step at a time — motion activated | Casa Norex

COB Strip

A continuous line of light under every tread

The COB strip is 8mm wide with 480 LEDs per meter, delivering 1000–1100 lumens per meter at 10W/m. Adhesive backing fixes it under the step, and it cuts every 50mm to fit your tread. Choose Warm White (3000K), Neutral White (4000K), Cool White (6000K) or RGB.

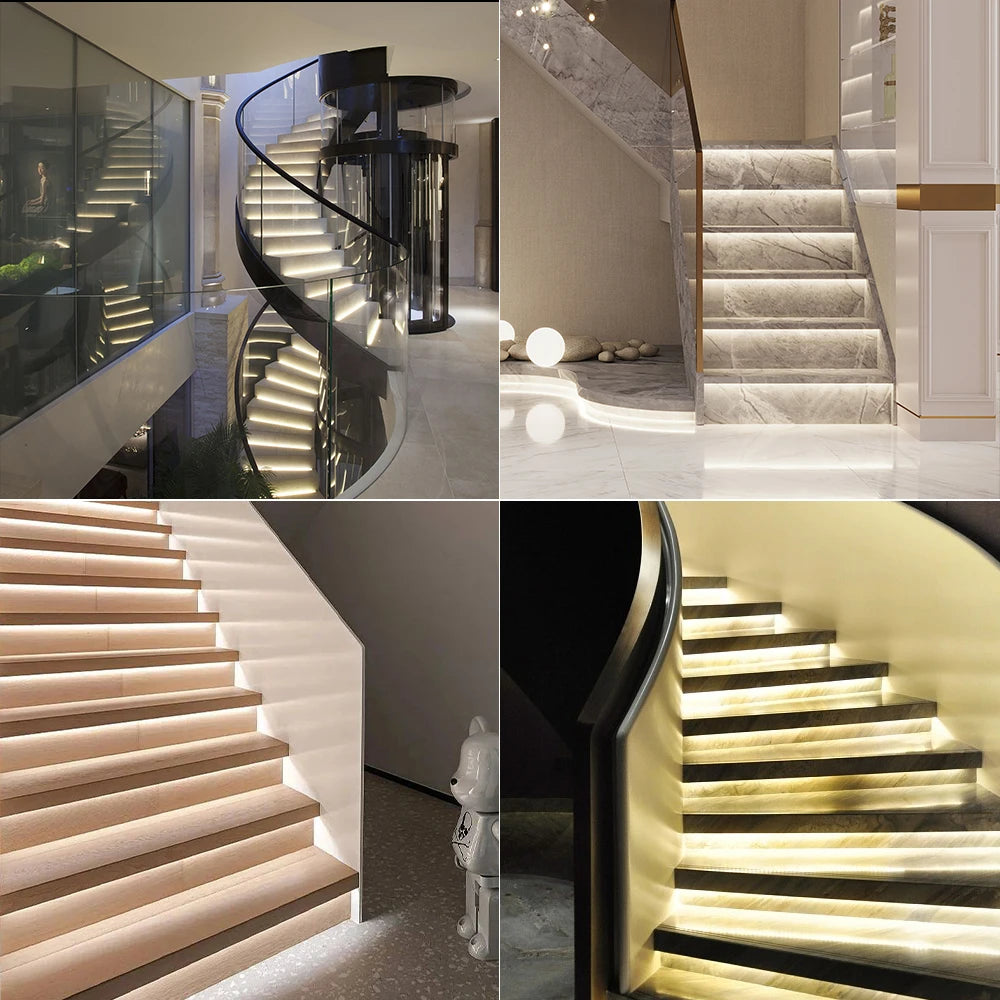

Motion sensor LED strip light stair kit — COB strip lighting each step in warm, neutral or cool white | Casa Norex

Easy Setup

Connect once, light every step

The main line cable arrives already connected to the controller. Drill a 4mm hole beside each strip, pull the wire through, and press the strip's clamps onto the main line. Switch the controller off before adding or removing strips.
